Tesla 4000-SV String Configuration Tool

SECTION A:

Product Configuration ID
TESLA 4000 aa-bb-c-d-e-ff-g-h-i-j-k

Please build the Product Configuration ID by completing the steps below

Click here to see order template [PDF]

Input Channels:

S2: Model 4000-SV, 36 sampled value analog inputs (IEC 61850), 256 virtual inputs (IEC 61850), 64 digital inputs, 8 digital outputs

Flash memory:

64: 64G flash memory
1T: 1TB flash memory

LAN Redundancy Selection:

Network port redundancy on rear Ethernet ports 401, 402 and 410 is available as an option. If single port redundancy is required then select between option 1 and 2 for RSTP and PRP respectively. If multiple port redundancy is required then select option 4. Option 4 offers PRP or Non-redundancy modes, each of which are independently selectable through software by the user.

0: No redundancy (PTP/IEEE 1588 not available if selected)
1: RSTP Redundancy on Ethernet ports 410/412
2: PRP Redundancy on Ethernet ports 410/412
4: Redundancy* on Ethernet Ports 401A/B, 402A/B and 410A/B

*PRP is supported.

LAN Media Selection:

Select the type of communication media on the TESLA’s rear network ports. Choose between copper twisted pair (RJ45) and fiber optic interfaces using the available selections below.

0: port 401 = 100BASE-T (RJ45)

port 402 = 1000BASE-T (RJ45)

port 410 = 100BASE-T (RJ45)

port 411 = 100BASE-FX (multimode, 1300 nm, ST)

1: port 401 = 100BASE-T (RJ45)

port 402 = 1000BASE-T (RJ45)

port 410 = 100BASE-FX (multimode, 1300 nm, ST)

port 411 = 100BASE-FX (multimode, 1300 nm, ST)

2: port 401 = 100BASE-T (RJ45)

port 402 = 1000BASE-T (RJ45)

port 410 = 100BASE-T (RJ45)

port 411 = 100BASE-T (RJ45)

3: port 401 = 100BASE-T (RJ45)

port 402 = 1000BASE-T (RJ45)

port 410/412 (redundant) = 100BASE-T (RJ45)

port 411 = 100BASE-FX (multimode, 1300 nm, LC)

4: port 401 = 100BASE-T (RJ45)

port 402 = 1000BASE-T (RJ45)

port 410/412 (redundant) = 100BASE-FX (multimode, 1300 nm, LC)

port 411 = 100BASE-FX (multimode, 1300 nm, LC)

5: port 401A/401B (redundant) = SFP*

port 402A/402B (redundant) = SFP*

port 410A/410B (redundant) = SFP*

port 411 = 100BASE-T (RJ45)

* Please refer to SECTION B for the available types of SFPs and indicate the required type needed for each port

Internal Modem:

0: No internal modem

Operating Frequency:

50: 50 Hertz
60: 60 Hertz

CE and UKCA Compliance:

CE and UKCA compliance is standard for TESLA 4000 products.

0: CE / UKCA marked

1: CE / UKCA marked

Conformal Coating:

0: Not conformal coated (default)

1: Conformal coated

Note: Conformal coating is available only with the 1TB memory option.

Custom Firmware Request:

0: Latest version (default)
1: Custom version (please mention firmware version number)

Custom Hardware Request:

0: No special build instructions (default)
1: Special build instructions (please mention special instructions)

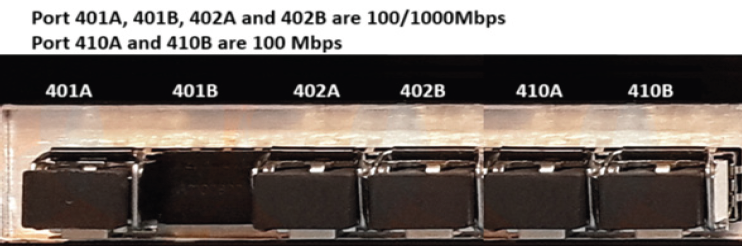

SECTION B: SFP Kit TESLA 4000-SV provides three redundant network ports in Small Form-factor Pluggable (SFP) arrangement. SFPs for all Ports (401, 402, 410) can be selected as 100 or 1000 Mbps fiber or 100/1000 Mbps Cu port, which have to be defined by the user while ordering. Port 402 is the Process Bus port. Port 410 speed is rated internally for 100 Mbps. 6 SFPs are needed if all the network ports are used. Please refer to the User Manual section 4, for the available services on each communication network port, to select the appropiate port type required. It is recommended that ERL-supplied SFPs always be used for proper TESLA operation.

Please select the Small Form-factor Pluggable (SFP) type by completing the steps below

SFP Type Selection Options for each port:

0: No SFP is Installed
A: 1000 BASE-LX (MM, 1310 nm, LC) SFP
B: 100 BASE-FX (MM, 1310 nm, LC) SFP
C: 100/1000 BASE-T (RJ45) SFP

Note: SFPs are non-conformal coated.

401A :	401B :	402A :	402B :	410A:	410B:

Selected SFP Type:

401A : C : 100/1000 BASE-T (RJ45) SFP
401B : C : 100/1000 BASE-T (RJ45) SFP
402A : A : 1000 BASE-LX (MM, 1310 nm, LC) SFP
402B : A : 1000 BASE-LX (MM, 1310 nm, LC) SFP
410A : B : 100 BASE-FX (MM, 1310 nm, LC) SFP
410B : B : 100 BASE-FX (MM, 1310 nm, LC) SFP
